14.9：@Monitor

ArkUI 开发框架提供了 @Monitor 装饰器来监听状态变量的修改，使得状态变量具有深度监听的能力，本节笔者简单介绍一下 @Monitor 的使用。

14.9.1：约束与限制

• @Monitor 只支持 @Local、@Param、@Provider 和 @Consumer 装饰的变量。
• @Monitor 允许在 @ObserverV2 的类内使用来监听 @Trace 装饰的变量。
• @Monitor 在继承类场景中，父子类同时监听同一个属性则会同时回调监听函数。

14.9.2：语法介绍

@Monitor 装饰器可以接收一个或多个装饰器参数，这些参数为状态属性名，中间用逗号隔开，然后装饰一个方法，并且要求该方法仅接收一个 IMonitor 类型的参数，格式为： @Monitor("attribute1", "attribute2", ..., "attributeN") function_name(monitor: IMonitor)，样例如下所示：

@Entry @ComponentV2 struct Page_state {

  @Local userName: string = ""               // 定义状态变量userName

  @Monitor("userName")                       // 使用@Monitor监听userName，如果userName变化了则执行notifyUserNameChanged()方法
  notifyUserNameChanged(monitor: IMonitor) { // IMonitor包含了状态属性前后变化值和属性名
  }

  build() {
  }

}

14.9.3：简单样例

@Monitor 的简单样例如下所示：

import { promptAction } from '@kit.ArkUI'

@Entry @ComponentV2 struct Page_state {

  @Local userName: string = "张三"           // 定义状态变量userName

  @Monitor("userName")                      // 监听状态变量userName
  notifyUserNameChanged(monitor: IMonitor) {
    monitor.dirty.forEach((name) => {
      let before = monitor.value(name)?.before as string
      let now = monitor.value(name)?.now as string
      promptAction.showToast({
        message: "之前: " + before + ", 现在: " + now,
        alignment: Alignment.Top
      })
    })

  }

  build() {
    Column({space: 20}) {
      Text(this.userName)
      Button("更改用户名")
        .onClick(() => {
          this.userName = "李四：" + new Date().getMilliseconds();
        })
    }
    .width("100%")
  }

}

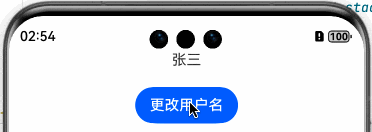

样例运行结果如下图所示：

14.9.4：使用场景

• 多属性监听

  @Monitor 支持同时监听多个状态属性，简单样例如下所示：

  import { promptAction } from '@kit.ArkUI'

  @Entry @ComponentV2 struct Page_state {

    @Local userName: string = "张三"
    @Local address: string = "北京"
    @Local birthday: string = "2020"

    @Monitor("userName", "address", "birthday")
    notifyUserNameChanged(monitor: IMonitor) {
      monitor.dirty.forEach((name) => {
        let before = monitor.value(name)?.before as string
        let now = monitor.value(name)?.now as string
        promptAction.showToast({
          message: "之前: " + before + ", 现在: " + now,
          alignment: Alignment.Top
        })
      })

    }

    build() {
      Column({space: 20}) {
        Text(this.userName + ", " + this.address + ", " + this.birthday)
        Row({space: 10}) {
          Button("更改姓名")
            .onClick(() => {
              this.userName = "李四：" + new Date().getMilliseconds();
            })
          Button("更改住址")
            .onClick(() => {
              this.address = "北京：" + new Date().getMilliseconds();
            })
          Button("更改生日")
            .onClick(() => {
              this.birthday = "2020：" + new Date().getMilliseconds();
            })
        }
      }
      .width("100%")
    }

  }

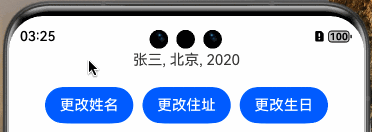

  样例运行结果如下图所示：



• 类对象监听

  @Monitor支持监听状态对象，也就是说只支持对状态对象本身赋值操作做监听，简单样例如下所示：

  import { promptAction } from '@kit.ArkUI'

  class User {
    userName: string;
    address: string;

    constructor(userName: string, address: string) {
      this.userName = userName;
      this.address = address;
    }
  }

  @Entry @ComponentV2 struct Page_state {

    @Local user: User = new User("张三", "北京")

    @Monitor("user")
    notifyUserNameChanged(monitor: IMonitor) {
      monitor.dirty.forEach((name) => {
        let before = JSON.stringify(monitor.value(name)?.before)
        let now = JSON.stringify(monitor.value(name)?.now)
        promptAction.showToast({
          message: "之前: " + before + ", 现在: " + now,
          alignment: Alignment.Top
        })
      })

    }

    build() {
      Column({space: 20}) {
        Text("用户：" + this.user.userName + ", " + this.user.address)
        Row({space: 10}) {
          Button("更改用户")
            .onClick(() => {
              this.user = new User("李四", "上海"); // Text刷新
            })
          Button("更改姓名")
            .onClick(() => {
              this.user.userName = "王五"          // Text不变
            })
        }
      }
      .width("100%")
    }

  }

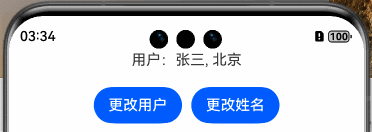

  样例运行结果如下图所示：



• 多层次监听

  @Monitor支持监听状态对象内被@Trace修饰的属性，简单样例如下所示：

  import { promptAction } from '@kit.ArkUI'

  @ObservedV2
  class User {

    @Trace
    userName: string;
    @Trace
    address: string;

    constructor(userName: string, address: string) {
      this.userName = userName;
      this.address = address;
    }
  }

  @Entry @ComponentV2 struct Page_state {

    @Local user: User = new User("张三", "北京") // 定义状态属性

    @Monitor("user", "user.userName")           // 监听状态，注意监听状态对象的状态属性的写法
    notifyUserNameChanged(monitor: IMonitor) {  // 监听回调
      monitor.dirty.forEach((name) => {
        let before = JSON.stringify(monitor.value(name)?.before)
        let now = JSON.stringify(monitor.value(name)?.now)
        promptAction.showToast({
          message: "之前: " + before + ", 现在: " + now,
          alignment: Alignment.Top
        })
      })

    }

    build() {
      Column({space: 20}) {
        Text("用户：" + this.user.userName + ", " + this.user.address)
        Row({space: 10}) {
          Button("更改用户")
            .onClick(() => {
              this.user = new User("李四", "上海"); // 可以监听
            })
          Button("更改姓名")
            .onClick(() => {
              this.user.userName = "王五"          // 可以监听
            })
        }
      }
      .width("100%")
    }

  }


  简单样例如下图所示：



  📢：监听状态类对象的属性时，注意属性名的写法。

• 多继承监听

  @Monitor在继承类场景下，可以在继承链中对同一个属性进行多次监听，简单样例如下所示：

  @ObservedV2 class Base {
    @Trace userName: string;

    constructor(userName: string) {
      this.userName = userName;
    }

    @Monitor("userName")
    notifyUserNameChangedInBase(monitor: IMonitor) {
      console.log("notifyUserNameChangedInBase: " + JSON.stringify(monitor))
    }

  }

  @ObservedV2 class Parent extends Base {
    constructor(userName: string) {
      super(userName);
    }

    @Monitor("userName")
    notifyUserNameChangedInParent(monitor: IMonitor) {
      console.log("notifyUserNameChangedInParent: " + JSON.stringify(monitor))
    }
  }

  @ObservedV2 class User extends Parent {

    @Trace
    address: string;

    constructor(userName: string, address: string) {
      super(userName);
      this.address = address;
    }

    @Monitor("userName")
    notifyUserNameChangedInUser(monitor: IMonitor) {
      console.log("notifyUserNameChangedInUser: " + JSON.stringify(monitor))
    }
  }

  @Entry @ComponentV2 struct Page_state {

    @Local user: User = new User("张三", "北京") // 定义状态属性

    build() {
      Column({space: 20}) {
        Text("用户：" + this.user.userName + ", " + this.user.address)
        Row({space: 10}) {
          Button("更改用户")
            .onClick(() => {
              this.user = new User("李四", "上海");
            })
          Button("更改姓名")
            .onClick(() => {
              this.user.userName = "王五"          // 可以监听
            })
        }
      }
      .width("100%")
    }

  }


  样例运行结果如下图所示：



  点击 更改姓名 按钮，控制台日志打印如下：
